Adding a plotting interface gliderpy#

Created: 2024-08-29

Updated: 2025-04-15

As part of Googe Summer of Code 2024, a new plotting interface was added to gliderpy to make it easier to expore the data. In this notebook we will walk through the new functions one can use to quickly visualize glider data.

The new plotting interface consists of plot_ track, plot_ctd, and plot_transect for plotting the glider track, single cast (glider dive), or a vertical transect respectively. Let’s take a look on how to use them.

First we will load a glider dataset with gliderpy. More information about gliderpy can be found in the docs.

import matplotlib.pyplot as plt
from gliderpy.fetchers import GliderDataFetcher

glider_grab = GliderDataFetcher()

glider_grab.fetcher.dataset_id = "whoi_406-20160902T1700"
df = glider_grab.to_pandas()

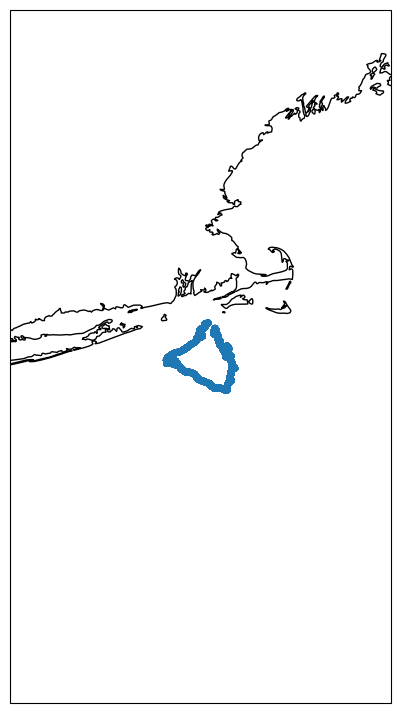

Let’s start with the plot_track method to check a map with theis glider’s track.

fig, ax = df.plot_track()
../../../_images/35d9575f929f53a865d4967642b1ff7161eb25c246af380cfe8a9965eaaab557.png

This is essentially a cartopy figure and one can customize it further to add tick marks, change coastline, land features, etc. However, the idea is to have gliderpy’s defaults to be just a bare minimum for a quick visualization.

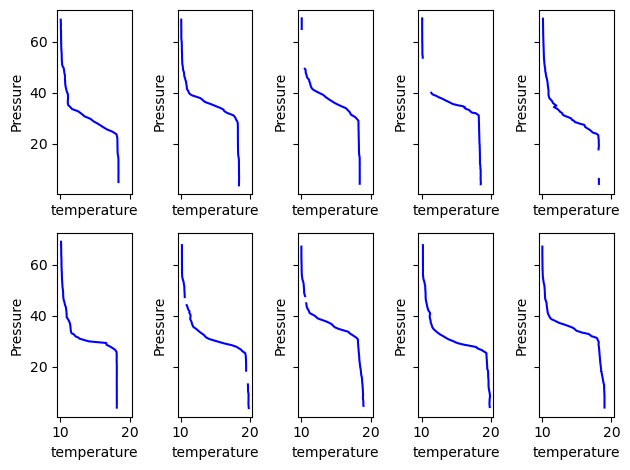

Imagine if you are inspection the dives for some QA/QC, like checking for spikes. You can use the plot_ctd to group all the casts and plot them using their profile_number in grouped DataFrame. Let’s inspect the first 10 profiles.

fig, axes = plt.subplots(nrows=2, ncols=5, sharex=True, sharey=True)

for k, ax in enumerate(axes.ravel()):
    df.plot_cast(ax=ax, profile_number=k, var="temperature", color="blue")

fig.tight_layout()
../../../_images/accf3aa3490cc28744a41b2d6fb272f42bf913f5824601128809f129d532566b.png

As we can see from the gaps in some of the progiles this dataset was aready QA/QC’ed.

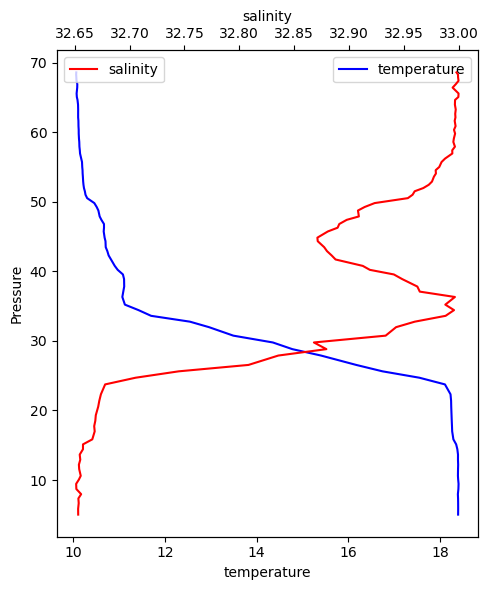

Note that all the methods accept an ax argument. With that we can create tweak our figures. Here is another example, let’s plot two variables from the same cast.

fig, ax0 = df.plot_cast(profile_number=0, var="temperature", color="blue")

ax1 = ax0.twiny()
df.plot_cast(profile_number=0, var="salinity", color="red", ax=ax1)

ax0.legend()
ax1.legend()

fig.tight_layout()
../../../_images/15c30dff539e6db02cf2c2c9aba366b14e7ea07c16afc28eeb072e8aacdd8e81.png

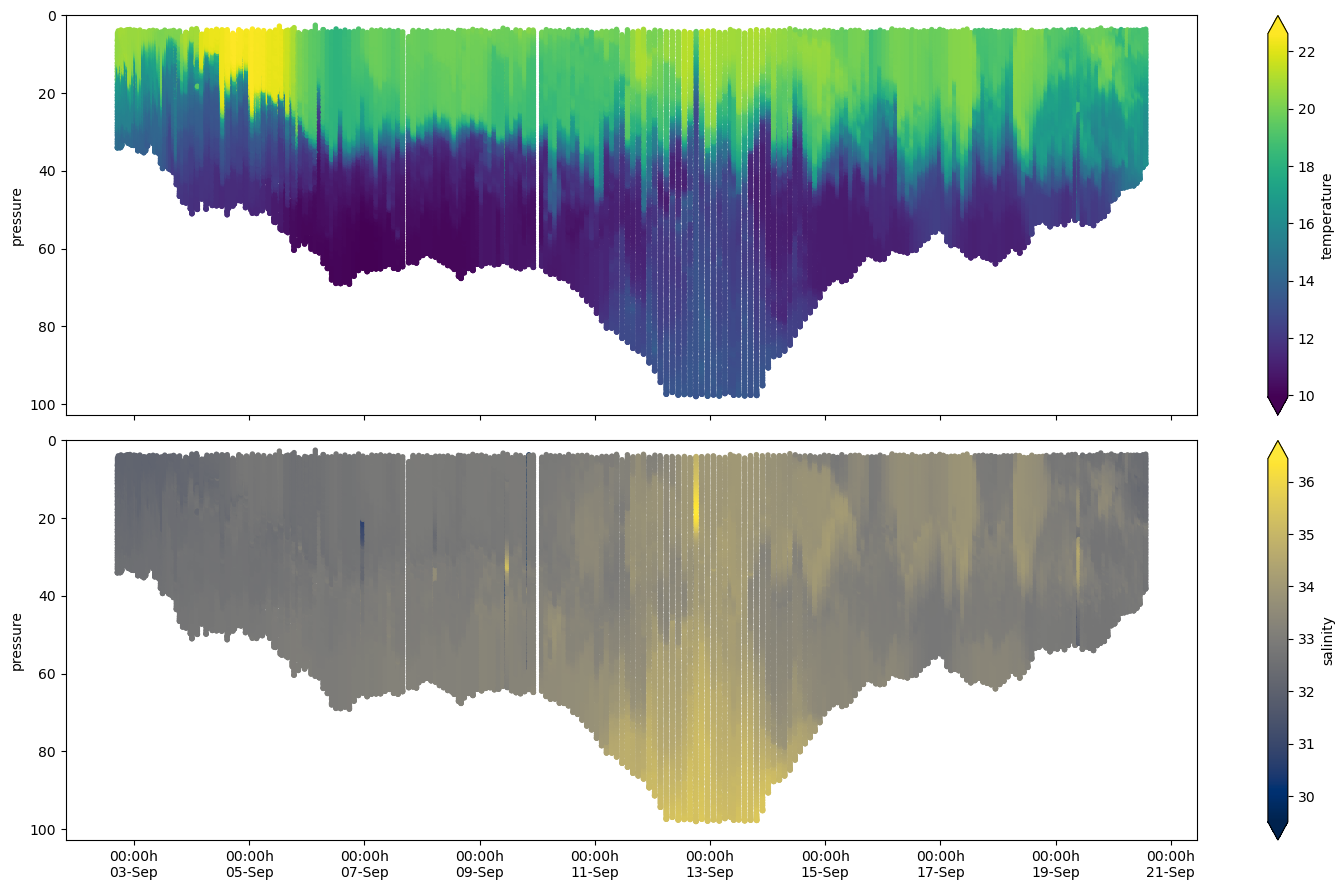

We can check a whole transec with the plot_transect method.

fig, (ax0, ax1) = plt.subplots(
    figsize=(15, 9),
    nrows=2,
    sharex=True,
    sharey=True,
)

df.plot_transect(var="temperature", ax=ax0, cmap="viridis")
df.plot_transect(var="salinity", ax=ax1, cmap="cividis")

fig.tight_layout()
../../../_images/e34241bc3e4fad23c8e57b8f885150c3c651fc8c4ced5e7b6c08f5b2c19388a5.png

We hope this new functionality is useful!
