Near real-time HF-Radar currents in the proximity of the Deepwater Horizon site

The explosion on the Deepwater Horizon (DWH) tragically killed 11 people, and resulted in one of the largest marine oil spills in history. One of the first questions when there is such a tragedy is: where will the oil go?

In order the help answer that question one can use Near real time currents from the HF-Radar sites near the incident.

First let’s start with the HF-Radar DAC, where one can browser the all available data interactively. Below we show an IFrame with the area near DWH for the 27 of July of 2017.

In this notebook we will demonstrate how to obtain such data programmatically.

(For more information on the DWH see http://response.restoration.noaa.gov/oil-and-chemical-spills/significant-incidents/deepwater-horizon-oil-spill.)

This notebook is stale and won't run due to missing data upstream and changes in the libraries used.
from IPython.display import HTML

url = (
    "https://cordc.ucsd.edu/projects/mapping/maps/fullpage.php?"
    "ll=29.061888,-87.373643&"
    "zm=7&"
    "mt=&"
    "rng=0.00,50.00&"
    "us=1&"
    "cs=4&"
    "res=6km_h&"
    "ol=3&"
    "cp=1"
)


iframe = (
    '<iframe src="{src}" width="750" height="450" style="border:none;"></iframe>'.format
)

HTML(iframe(src=url))
/home/filipe/miniconda3/envs/IOOS/lib/python3.6/site-packages/IPython/core/display.py:689: UserWarning: Consider using IPython.display.IFrame instead
  warnings.warn("Consider using IPython.display.IFrame instead")

The interactive interface is handy for exploration but we usually need to download “mechanically” in order to use them in our analysis, plots, or for downloading time-series.

One way to achieve that is to use an OPeNDAP client, here Python’s xarray, and explore the endpoint directly.

(We’ll use the same 6 km resolution from the IFrame above.)

import xarray as xr

url = (
    "http://hfrnet-tds.ucsd.edu/thredds/dodsC/HFR/USEGC/6km/hourly/RTV/"
    "HFRADAR_US_East_and_Gulf_Coast_6km_Resolution_Hourly_RTV_best.ncd"
)

ds = xr.open_dataset(url)
ds
<xarray.Dataset>
Dimensions:       (lat: 460, lon: 701, nProcParam: 7, nSites: 38, time: 60554)
Coordinates:
  * lat           (lat) float32 21.73596 21.7899 21.84384 ... 46.44048 46.49442
  * lon           (lon) float32 -97.88385 -97.825775 ... -57.289284 -57.23121
  * time          (time) datetime64[ns] 2012-01-01 ... 2018-11-30T10:00:00
    time_run      (time) datetime64[ns] ...
Dimensions without coordinates: nProcParam, nSites
Data variables:
    site_lat      (nSites) float32 ...
    site_lon      (nSites) float32 ...
    site_code     (nSites) |S64 ...
    site_netCode  (nSites) |S64 ...
    procParams    (nProcParam) float32 ...
    time_offset   (time) datetime64[ns] ...
    u             (time, lat, lon) float32 ...
    v             (time, lat, lon) float32 ...
    DOPx          (time, lat, lon) float32 ...
    DOPy          (time, lat, lon) float32 ...
Attributes:
    netcdf_library_version:  4.1.3
    format_version:          HFRNet_1.0.0
    product_version:         HFRNet_1.1.05
    Conventions:             CF-1.4
    title:                   Near-Real Time Surface Ocean Velocity, U.S. East...
    institution:             Scripps Institution of Oceanography
    source:                  Surface Ocean HF-Radar
    history:                 30-Nov-2018 08:10:47: NetCDF file created\n30-No...
    references:              Terrill, E. et al., 2006. Data Management and Re...
    creator_name:            Mark Otero
    creator_email:           motero@ucsd.edu
    creator_url:             http://cordc.ucsd.edu/projects/mapping/
    summary:                 Surface ocean velocities estimated from HF-Radar...
    geospatial_lat_min:      21.73596
    geospatial_lat_max:      46.49442
    geospatial_lon_min:      -97.88385
    geospatial_lon_max:      -57.23121
    grid_resolution:         6km
    grid_projection:         equidistant cylindrical
    regional_description:    Unites States, East and Gulf Coast
    _CoordSysBuilder:        ucar.nc2.dataset.conv.CF1Convention
    cdm_data_type:           GRID
    featureType:             GRID
    location:                Proto fmrc:HFRADAR_US_East_and_Gulf_Coast_6km_Re...
    DODS.strlen:             25
    DODS.dimName:            nSites_maxStrlen

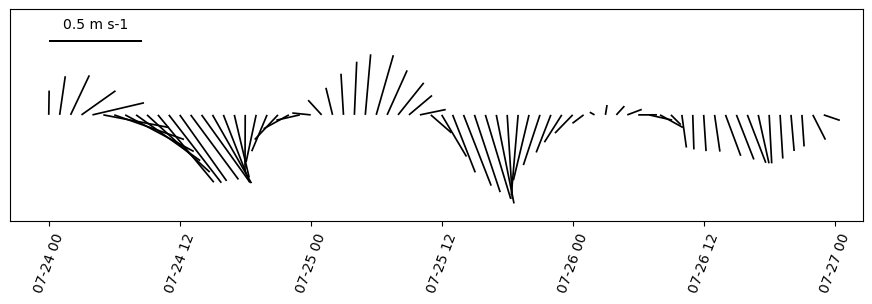

How about extracting a week time-series from the dataset averaged around the area of interest?

dx = dy = 2.25  # Area around the point of interest.
center = -87.373643, 29.061888  # Point of interest.

dsw = ds.sel(time=slice("2017-07-20", "2017-07-27"))
dsw = dsw.sel(
    lon=(dsw.lon < center[0] + dx) & (dsw.lon > center[0] - dx),
    lat=(dsw.lat < center[1] + dy) & (dsw.lat > center[1] - dy),
)

With xarray we can average hourly (resample) the whole dataset with one method call.

resampled = dsw.resample(indexer={"time": "1H"})
avg = resampled.mean(dim="time")
/home/filipe/miniconda3/envs/IOOS/lib/python3.6/site-packages/xarray/core/nanops.py:161: RuntimeWarning: Mean of empty slice
  return np.nanmean(a, axis=axis, dtype=dtype)

Now all we have to do is mask the missing data with NaNs and average over the area.

import numpy.ma as ma

v = avg["v"].data
u = avg["u"].data
time = avg["time"].to_index().to_pydatetime()

u = ma.masked_invalid(u)
v = ma.masked_invalid(v)
i, j, k = u.shape

u = u.reshape(i, j * k).mean(axis=1)
v = v.reshape(i, j * k).mean(axis=1)
%matplotlib inline
import matplotlib.pyplot as plt
from oceans.plotting import stick_plot

fig, ax = plt.subplots(figsize=(11, 2.75))

q = stick_plot(time, u, v, ax=ax)

ref = 0.5
qk = plt.quiverkey(
    q,
    0.1,
    0.85,
    ref,
    "{} {}".format(ref, ds["u"].units),
    labelpos="N",
    coordinates="axes",
)

_ = plt.xticks(rotation=70)
../../../_images/2017-07-25-HFRadar_currents_14_0.png

To close this post let’s us reproduce the HF radar DAC image from above but using yesterday’s data.

from datetime import date, timedelta

yesterday = date.today() - timedelta(days=1)

dsy = ds.sel(time=yesterday)

Now that we singled out the date and and time we want the data, we trigger the download by accessing the data with xarray’s .data property.

u = dsy["u"].data
v = dsy["v"].data

lon = dsy.coords["lon"].data
lat = dsy.coords["lat"].data
time = dsy.coords["time"].data

The cell below computes the speed from the velocity. We can use the speed computation to color code the vectors. Note that we re-create the vector velocity preserving the direction but using intensity of 1. (The same visualization technique used in the HF radar DAC.)

import numpy as np
from oceans.ocfis import spdir2uv, uv2spdir

angle, speed = uv2spdir(u, v)
us, vs = spdir2uv(np.ones_like(speed), angle, deg=True)

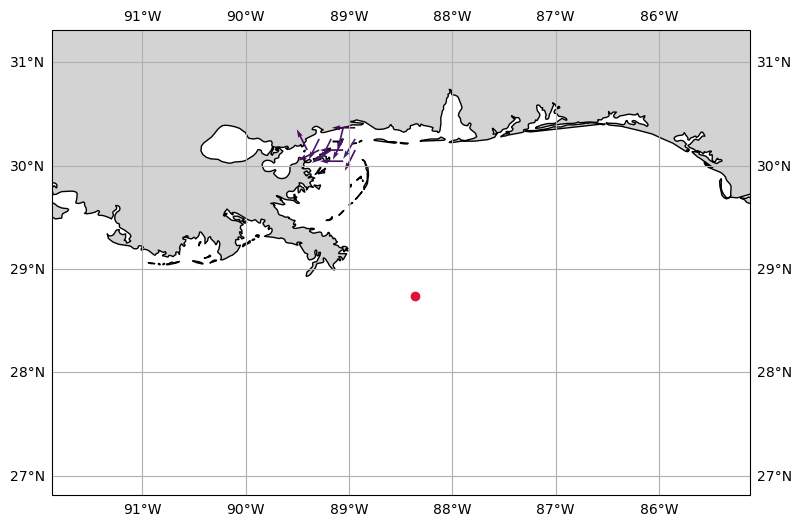

Now we can create a matplotlib figure displaying the data.

import cartopy.crs as ccrs
from cartopy import feature
from cartopy.mpl.gridliner import LATITUDE_FORMATTER, LONGITUDE_FORMATTER

LAND = feature.NaturalEarthFeature(
    "physical", "land", "10m", edgecolor="face", facecolor="lightgray"
)

sub = 2
bbox = lon.min(), lon.max(), lat.min(), lat.max()

fig, ax = plt.subplots(figsize=(9, 9), subplot_kw=dict(projection=ccrs.PlateCarree()))


ax.set_extent([center[0] - dx - dx, center[0] + dx, center[1] - dy, center[1] + dy])
vmin, vmax = np.nanmin(speed[::sub, ::sub]), np.nanmax(speed[::sub, ::sub])
speed_clipped = np.clip(speed[::sub, ::sub], 0, 0.65)
ax.quiver(
    lon[::sub], lat[::sub], us[::sub, ::sub], vs[::sub, ::sub], speed_clipped, scale=30,
)

# Deepwater Horizon site.
ax.plot(-88.365997, 28.736628, marker="o", color="crimson")
gl = ax.gridlines(draw_labels=True)
gl.xlabels_top = gl.ylabels_right = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER

feature = ax.add_feature(LAND, zorder=0, edgecolor="black")
../../../_images/2017-07-25-HFRadar_currents_22_0.png
